OWON XDG3000 Series 2-CH 250MHz Arbitrary Waveform Generator
- Advanced DDS technology, up to 250MHz frequency output
- 1.25GS/s sampling rate, and 1 μHz frequency resolution
- Up to 1M arbitrary waveform length
- Vertical resolution : 14 bits
- Comprehensive waveform output : 6 group basic waveforms, and 152 group built-in arbitrary waveforms
- Comprehensive modulation options: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, sweep, and burst
- High-accuracy frequency counter integrated, ranging from 100mHz till 200MHz
- SCPI, and LabVIEW supported
- 8'' 800 x 600 pixels touch screen LCD
We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON 2-CH 250MHz Arbitrary Waveform Generator, dual channel waveform generator, frequency generator, power amplifier generator, arbitrary waveform generator, usb waveform generator, generator modulation function with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.
Model | XDG3252 | XDG3202 | XDG3162 | XDG3102 | XDG3082 | |
---|---|---|---|---|---|---|
Channel | 2 | |||||
Frequency Output | 250MHz | 200MHz | 160MHz | 100MHz | 80MHz | |
Sample Rate | 1.25GSa/s | |||||
Vertical Resolution | 14 bits | |||||
Waveform | ||||||
Standard Waveform | sine, square, pulse, ramp, noise, and harmonic | |||||
Arbitrary Waveform | exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform |
|||||
Frequency (resolution 1μHz) | ||||||
Sine | 1μHz - 250MHz | 1μHz - 200MHz | 1μHz - 160MHz | 1μHz - 100MHz | 1μHz - 80MHz | |
Square | 1μHz - 50MHz | 1μHz - 40MHz | 1μHz - 30MHz | |||
Pulse | 1μHz - 25MHz | |||||
Ramp | 1μHz - 5MHz | |||||
Harmonic | 1μHz - 125MHz | 1μHz - 100MHz | 1μHz - 80MHz | 1μHz - 50MHz | 1μHz - 40MHz | |
Noise | 120MHz (-3dB, typical) | |||||
Arbitrary Waveform | built-in waveform: 1uHz - 15MHz user-defined waveform: 1uHz - 50MHz |
|||||
Accuracy | ±1ppm, 0°C - 40°C | |||||
Amplitude | ||||||
into 50Ω load | 1mVpp - 10Vpp (≤40MHz); 1mVpp - 5Vpp (≤80MHz) 1mVpp - 2.5Vpp (≤120MHz); 1mVpp - 1Vpp (≤250MHz) |
|||||
into open circuit or high-Z | 2mVpp - 20Vpp (≤40MHz); 2mVpp - 10Vpp (≤80MHz); 2mVpp - 5Vpp (≤120MHz); 2mVpp - 2Vpp (≤250MHz) |
|||||
Resolution | 1mV or 4 digits | |||||
DC Offset | Range (50Ω) | ±(5 Vpk - Amplitude Vpp/2) | ||||
Range (high-Z, open circuit) | ±(10 Vpk - Amplitude Vpp/2) | |||||
Accuracy | ±(1% of |setting| + 1mV + Amplitude Vpp x 0.5%) | |||||
Resolution | 1mV or 4 digits | |||||
Load Impedance | 50Ω (typical) | |||||
Accuracy | ±(1% of setting + 1 mVpp) (typical, 1kHz sine, 0V offset) | |||||
|
||||||
Sine Wave Spectrum Purity | ||||||
Harmonic Distortion Typical (0dB) |
DC - 1MHz: <-65dBc 1MHz - 10MHz: <-60dBc 10MHz - 120MHz: <-50dBc 120MHz - 200MHz: <-45dBc |
|||||
Total Harmonic Distortion | <0.05 %, 10 Hz to 20 kHz, 1 Vpp | |||||
Spurious (non-harmonic), Typical (0dB) |
≤10MHz: <-70dBc >10MHz: <-70dBc + 6dB/ octave |
|||||
Phase Noise Typical (0 dBm, 10 kHz deviation) |
10MHz: ≤-110dBc/Hz | |||||
Square | ||||||
Rise/Fall Time | <5ns | |||||
Overshoot | <3% | |||||
Duty Cycle | 50.0% (fixed) | |||||
Jitter (rms) | 300ps + 100ppm | |||||
Pulse | ||||||
Pulse Width | 12ns - 996875s | |||||
Leading/Trailing Edge Time | ≧7ns | |||||
Overshoot | <3% | |||||
Jitter (rms) | 300ps + 100ppm | |||||
Ramp | ||||||
Linearity | ≤1% of peak output (typical, 1kHz, 1 Vpp, 50% symmetry) | |||||
Symmetry | 0% to 100% | |||||
Harmonic | ||||||
Harmonic Order | ≤16 | |||||
Harmonic Type | even, odd, all, user | |||||
Harmonic Amplitude | could be set for all the harmonics | |||||
Harmonic Phase | ||||||
Arbitrary | ||||||
Waveform Length | 2 points - 1M points | |||||
Vertical Resolution | 14 bits | |||||
Minimum Rise/Fall Time | <7ns | |||||
Jitter (rms) | 3ns | |||||
|
||||||
Modulation | ||||||
Type | AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, sweep, and burst | |||||
AM | ||||||
Carrier Waveform | sine, square, ramp, and arbitrary (except DC) | |||||
Source | internal / external | |||||
Modulating Waveform | sine, square, ramp, noise, and arbitrary | |||||
Depth | 0.0% - 100.0% | |||||
Modulating Frequency | 2 mHz - 100 kHz | |||||
FM | ||||||
Carrier Waveform | sine, square, ramp, and arbitrary (except DC) | |||||
Source | internal / external | |||||
Modulating Waveform | sine, square, ramp, noise, and arbitrary | |||||
Modulating Frequency | 2 mHz - 100 kHz | |||||
PM | ||||||
Carrier Waveform | sine, square, ramp, and arbitrary (except DC) | |||||
Source | internal / external | |||||
Modulating Waveform | sine, square, ramp, noise, and arbitrary | |||||
Phase Deviation | 0° - 180° | |||||
Modulating Frequency | 2 mHz - 100 kHz | |||||
PWM | ||||||
Carrier Waveform | pulse | |||||
Source | internal / external | |||||
Modulating Waveform | sine, square, ramp, noise, and arbitrary | |||||
Width Deviation | 0 ~ minimum (pulse duty ratio, 100% - pulse duty ratio) | |||||
Modulating Frequency | 2 mHz - 100 kHz | |||||
FSK / 3FSK / 4FSK | ||||||
Carrier Waveform | sine, square, ramp, and arbitrary (except DC) | |||||
Source | internal / external | |||||
Modulating Waveform | square with 50% duty cycle | |||||
Key Frequency | 2 mHz - 1MHz | |||||
PSK | ||||||
Carrier Waveform | sine, square, ramp, and arbitrary (except DC) | |||||
Source | internal / external | |||||
Modulating Waveform | square with 50% duty cycle | |||||
Key Frequency | 2 mHz - 1MHz | |||||
OSK | ||||||
Carrier Waveform | sine, square, ramp, and arbitrary (except DC) | |||||
Source | internal | |||||
Oscillation Time | square with 50% duty cycle | |||||
Key Frequency | 2 mHz - 1MHz | |||||
ASK | ||||||
Carrier Waveform | sine, square, ramp, and arbitrary (except DC) | |||||
Source | internal / external | |||||
Modulating Waveform | square with 50% duty cycle | |||||
Key Frequency | 2 mHz - 1MHz | |||||
BPSK | ||||||
Carrier Waveform | sine, square, ramp, and arbitrary (except DC) | |||||
Source | internal | |||||
Modulating Waveform | square with 50% duty cycle | |||||
Key Frequency | 2 mHz - 1MHz | |||||
Sweep | ||||||
Carrier Waveform | sine, square, ramp, and arbitrary (except DC) | |||||
Type | linear, and log | |||||
Direction | up, and down | |||||
Sweep Time | 1 ms to 500s, ± 0.1% | |||||
Trigger Source | internal, external, and manual | |||||
Burst | ||||||
Carrier Waveform | sine, square, ramp, pulse, and arbitrary (except DC) | |||||
Burst Count | 1 to 50,000 period, infinite, gating | |||||
Internal Period | 10 ns - 500 s | |||||
Gated Source | external trigger | |||||
|
||||||
Frequency Counter | ||||||
Function | frequency period, +width, -width, +duty, and -duty | |||||
Frequency Range | 100mHz - 200MHz | |||||
Frequency Resolution | 7 digits | |||||
Input / Output | ||||||

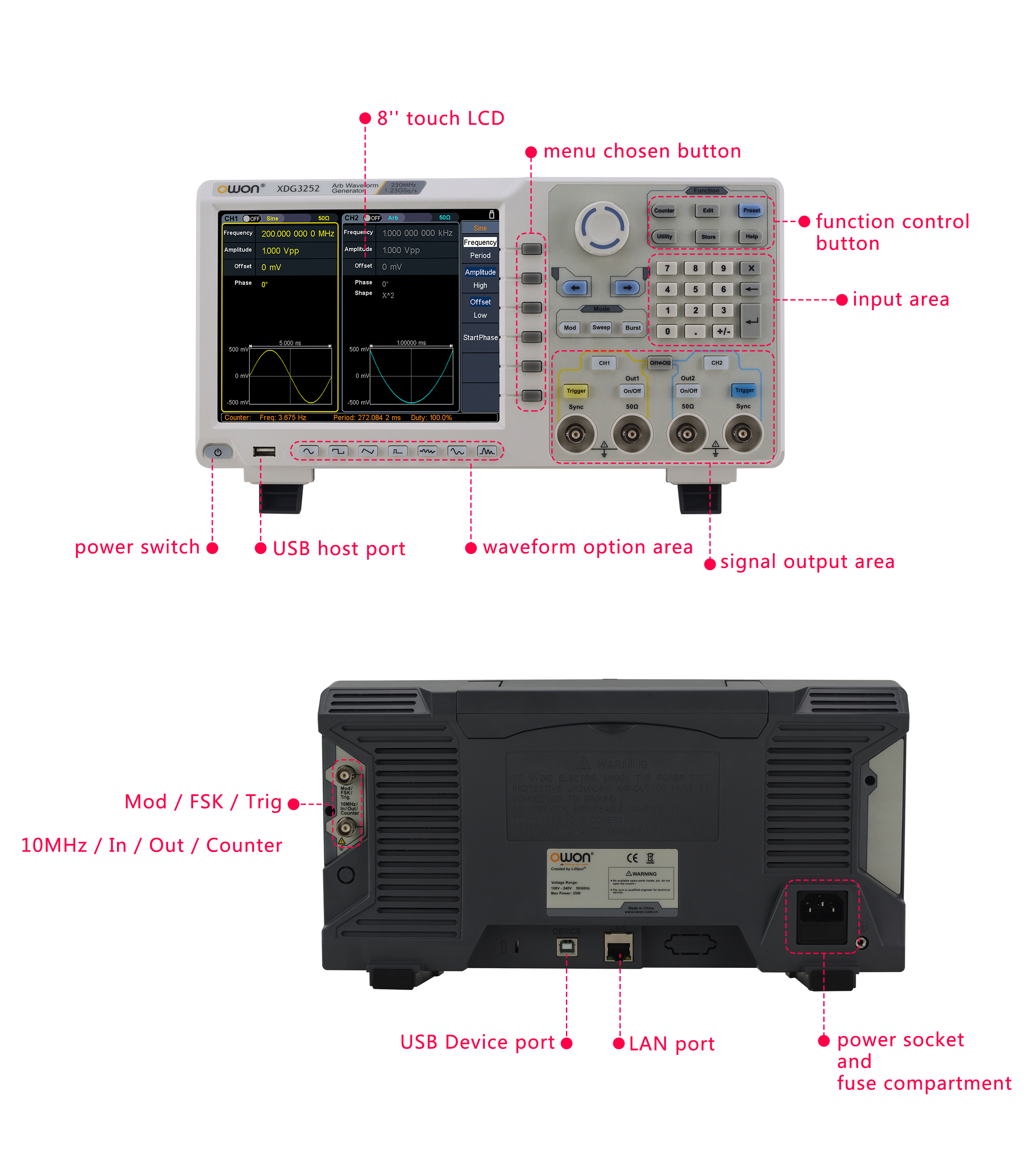

Display | 8”800 x 600 pixels touch screen LCD | |||||
Type | frequency counter, external modulation input, external trigger input, external reference clock input / output |
|||||

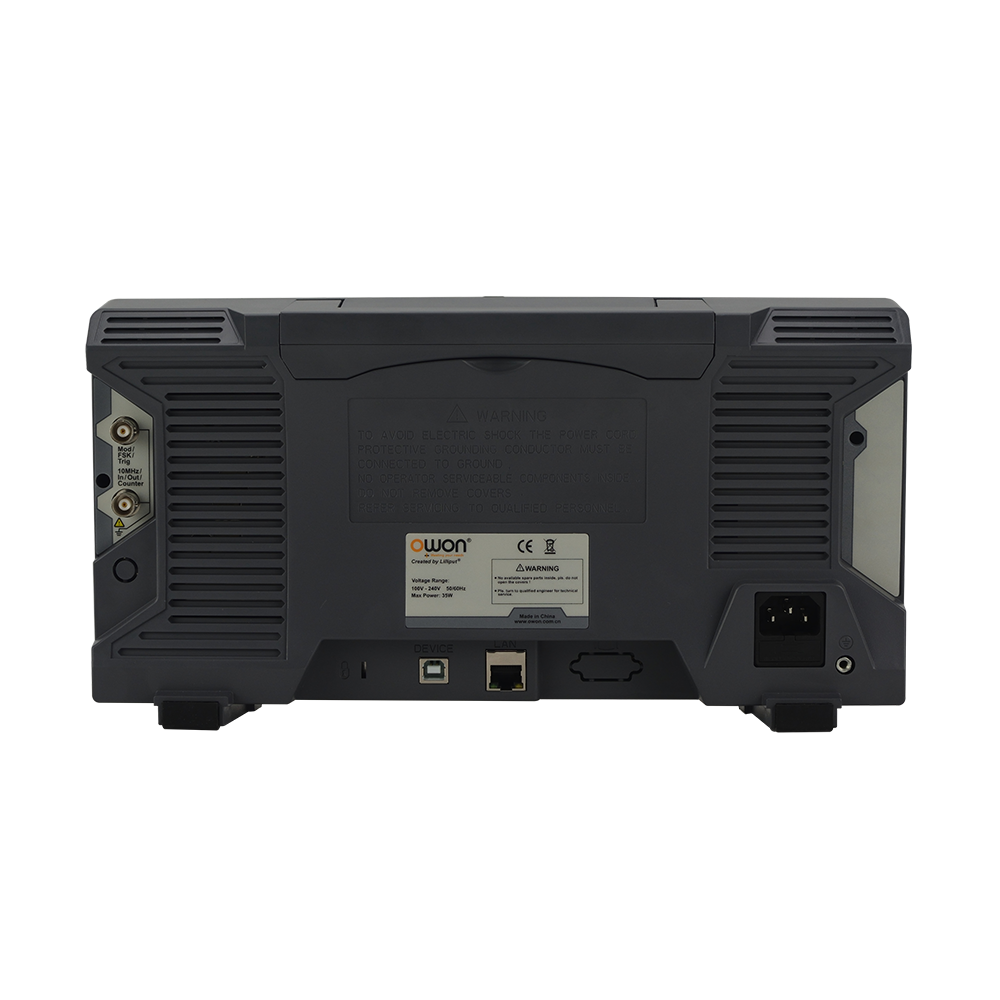

Communication Interface | USB Host, USB Device, and LAN | |||||
Dimension (W×H×D) | 340 x 177 x 90 (mm) | |||||
Weight (without package) | 2.50kg |
The accessories subject to final delivery.
-
Power Cord
-
CD Rom
-
Quick Guide
-
USB Cable
-
Q9 Cable
