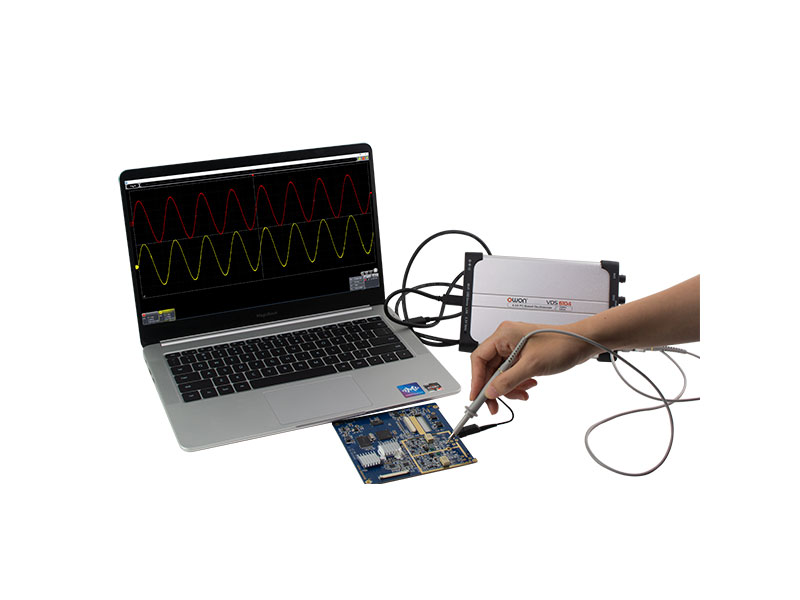

OWON VDS6000 series 4CH PC Oscilloscope

+ 4 channels ultra thin design

+ Up to 100MHz bandwidth, and max 1GS/s real-time sample rate

+ 8 bits, 12 bits, 14 bits vertical accuracy, more accurate measurement

+ Max 10M record length

+ Friendly UI : X-Y, and waveform 2 views displayed on the same screen

+ SCPI、LABVIEW supported

+ Support the secondary development of windows / Linux / Android / Ios platform

+ USB typ-c power supply, faster data transmission, support 5-15v wide voltage power supply

+ WIFI unlimited transmission, more convenient to use.

(WiFi accessories are required)

Send Inquiry
Product Details






Specifications

Model

VDS6074

VDS6104

VDS6074A

VDS6104A

Bandwidth

70MHz

100MHz

70MHz

100MHz

Channel

4 channels

Sample Rate

1GSa/s

Horizontal Scale (s/div)

1ns/div~100s/div, step by 1~2~5

Sampling mode

General sampling, peak detection, average

Record Length

10M

Input Coupling

DC, AC, GND

Input Impedance

1MΩ±2%,in parallel with15pF±5pF

Vertical Sensitivity

2mV/div~5V/div

Vertical Resolution (A/D)

8bits

8bits/12 bits/14 bits

Max Input Voltage

40V Peak value(DC + AC Peak value)

Bandwidth limitation

20 MHz,full bandwidth

Probe Attenuation Factor

1X,10X,100X,1000X

Trigger Type

Edge, Pulse,Video, Slope,

Trigger Mode

Auto, Normal, and Single

Cursor Measurement

△V, and △T between cursors

Automatic Measurement

Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty

Communication Interface

USB Device (Typ-c);USB Host ; LAN, WIFi(optional)

frequency counter

support

Dimensions (W × H × D)

190mm×120mm×18mm

Device Weight

About 0.45kg

Support
Accessories

The accessories subject to final delivery.

  • Power Cord
  • CD Rom
  • Quick Guide
  • USB Cable
  • Probe
  • Probe Adjust
  • Adapter
  • Silicon Gel Case
  • Q9 Cable
  • WIFI Modular(optional)
