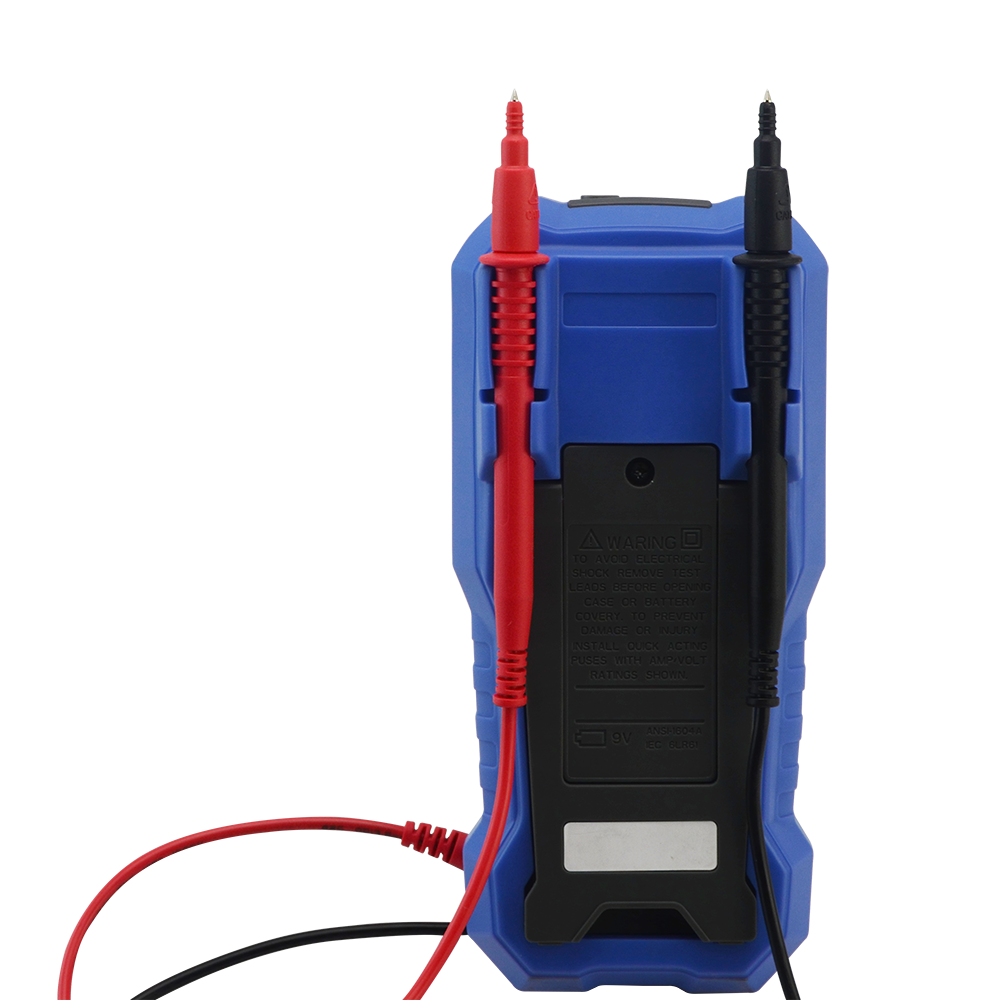

OWON OW18 Series 3 5/6 Smart Digital Multimeter

+ 3 5/6 bit resolution
+ Data Logger + Multimeter + Thermometer (Data logger function only for OW18B)
+ True RMS test supported
+ BLE 4.0 wireless transmission, more stable,less power consumption (only for OW18B)
+ Build-in offline record function (only for OW18B)
+ Chart and Diagram mode helps to analyze the data tendency (only for OW18B)
+ Flashlight function lightens the darkness
+ Support NCV non-contact voltage sense
+ Widely supported on Android, iOS  (only for OW18B)

Send Inquiry
Support
Product Details

 OWON OW Series NCV Multimeter


OWON Digital NCV Multimeter with Bluetooth is the branch of OWON's handheld multimeter series. With smaller size and faster reponse rate. Support NCV, True RMS, bluetooth communication. Can be used as Data Logger, Multimeter and Thermometer. Contact us for more detail information!BLE 4.0 wireless transmission, support muti-devices connection and  single-display monitoring.One mobile end can connect with multiple multimeters,  the test object is totally isolated with user to secure their life.Not only a multimeter, also a data logger and thermometer.Real time data are updated and recorded to end  user device, no need to be in field. User can define  the record time and sampling gap, data can be shown  as chart and diagram, multi-devices connection  supports data comparison.   User and test object are totally isolated,  which secure the life.Build-in offline record function.No need to put the end device in field, multimeter will save the data in its memory.  Use the smartphone to load the data when connected.Large display with flashlight.Large display with high brightness flashlight.  Can implement the test among darkness.NCV non-contact voltage sense.While getting the non-contact voltage sensor close to conductor,  the instrument will beeps and flash with the frequency according to  AC voltage strength.Support temperature test

Specifications

Model: OW18A / OW18B Measurement Ragnge Resolution Accruacy

DC Voltage
  60.00mV / 600.0mV 0.01mV ±(0.5%+2 dig)
 6.000V / 60.00V / 600.0V 1 mV
1000V 1 V ±(0.8%+2 dig)

AC Voltage
  600.0mV 0.1mV ±(0.8%+3dig)
6.000V / 60.00V / 600.0V 1 mV
750V 1 V ±(1%+3dig)
DC Current μA 600.0uA / 6000μA 0.1μA ±(0.8%+2dig)
mA 60.00mA / 600.0mA 0.01mA
A 20.00A 0.01A ±(1.2%+3dig)
AC Current μA 600.0uA / 6000μA 0.1μA ±(1%+3dig)
mA 60.00mA / 600.0mA 0.01mA
A 20.00A 0.01A ±(1.5%+3dig)
Resistance 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ 0.1Ω ±(0.8%+2dig)
60.00MΩ 0.01 MΩ ±(2%+3dig)
Capacitance 60.00nF / 600.0nF / 6.000μF / 60.00μF 0.01nF ±(2.5%+3dig)
600.0μF / 6.000mF / 60.00mF 0.1μF ±(3%+5dig)
Frequency 9.999Hz / 99,99Hz/999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz 0.001Hz ±(0.8%+2dig)
Duty Ratio 0.1% - 99.9% ( typical value:Vrms=1V, f=1kHz) 0.1% ±(1.2%+3dig)
0.1% - 99.9% ( ≥1kHz ) ±(2.5%+3dig)
Temperature (°C/°F) - 50 ℃~ +400℃ 1℃ ±(2.5%+3dig)
-58 ℉~ +752 ℉ 1℉ ±(4.5%+5dig)
Display 5999
Frequency Response (40 - 1000) Hz
Shift Rate 3 times/s



Bluetooth Module √   (only in OW18B) Auto Ranging √
True RMS √   LCD Backlight √
Diode Test √  Automatic-manual Range Selection
Auto Power-off √  Input Protection √
On-off Warning √  Input Impedance ≥10MΩ
Low-battery Indicator √  Safety Compliance CATⅣ600V,  CATⅢ1000V
Data Hold √  NCV √
Relative Measurement √  Dimension (W×H×D) 190 x 90 x56 (mm)
Flashlight √  Weight (without package) 0.30 kg

Accessories

The accessories subject to final delivery.

  • Quick Guide
  • Multimeter Lead
  • Alligator Clip (optional)
  • K-type Thermocouple
  • Bolt Driver
  • 9V battery (optional)
