4 1/2 digits Bench-type XDM2041 Digital Multimeter

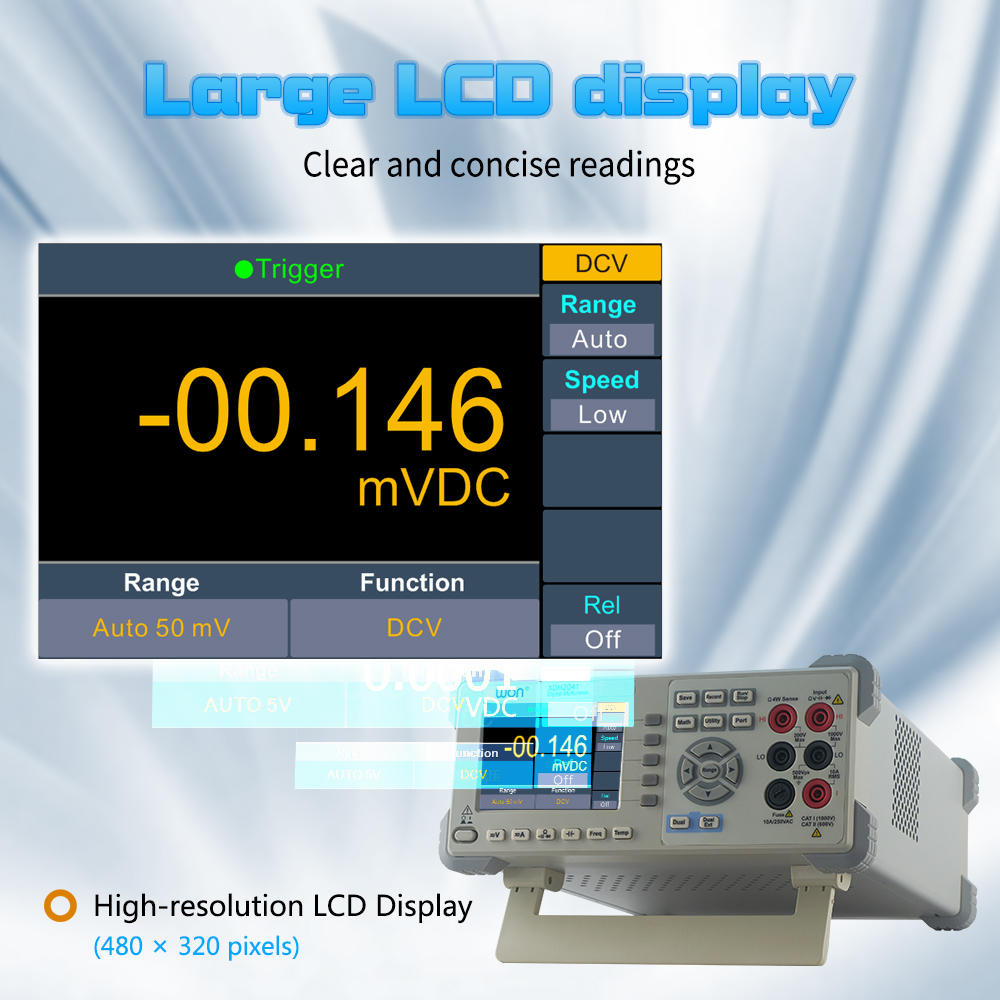

+ 4 inch (480x320) high resolution LCD

+ 55000 counts

+ Up to 65 readings per second

+ True RMS AC voltage / current measurement

+ Dual line display supported

+ Trend analysis accessible in chart mode

+ SCPI support

Send Inquiry
Support
Product Details


Specifications



Measurement Range

Resolution

Accuracy ±(% of reading + LSB)

DC Voltage

50.000mV

0.001mV

0.1%+10

500.00mV

0.01mV

0.025%+5

5.0000V

0.0001V

0.025%+5

50.000V

0.001V

0.03%+5

500.00V

0.01V

0.1%+5

1000.0V

0.1V

0.1%+5

AC Voltage

500mv-750v

20Hz~45Hz

1% + 30

45Hz~65Hz

0.5% + 30

65Hz~1KHz

0.7% + 30

DC Current

500uA

0.01uA

0.15%+20

5000uA

0.1uA

0.15%+10

50mA

0.001mA

0.15%+20

500mA

0.01mA

0.15%+10

5A

0.0001A

0.5%+10

10A

0.001A

0.5%+10

AC Current

500uA-500mA

20 Hz – 1 kHz

0.5%+20

5A-10A

1.5%+20

Resistance

500Ω

0.01Ω

0.1%+10

5KΩ

0.0001KΩ

0.1%+5

50KΩ

0.001KΩ

0.1%+5

500KΩ

0.01KΩ

0.1%+5

5MΩ

0.0001MΩ

0.25%+5

50MΩ

0.001MΩ

0.1%+10

Four-wire resistance

500Ω

0.01Ω

0.1%+10

5KΩ

0.0001KΩ

0.1%+5

50KΩ

0.001KΩ

0.1%+5



Measurement Range

Resolution

Accuracy ±(% of reading + % of range)

Frequency

10.000Hz–60MHz

/

±(0.2%+8)

Capacitance

50nF-500uF

/

2.5%+5

5mF-50mF

5%+8

Diode

3.0000 V

0.0001V

/

Continuity

1000 Ω

0.1Ω

/

Temperature

K type,PT100

Display

55,000

Data-logging Function

Logging Duration

15ms-9999s

Logging Length

1,000 points

Accessories

The accessories subject to final delivery.

  • Power Cord
  • Quick Guide
  • Multimeter Lead
  • Alligator Clip (optional)
  • Fuse
