programmable dc series
-
Model Digits of Resolution Reading Rate Dispaly Power supply XDM1041 4 1/2 60 rdgs/s 3.5" LCD AC Power XDM1241 4 1/2 60 rdgs/s 3.5" LCD Lithium Battery -
Modle Infrared resolution visible resolution Temperature measurement Display TI332 320 x 240 px 640 x 480 px -20 °C to 450 °C 3.5" TFT LCD TI322 220 x 160 px 640 x 480 px -20 °C to 450 °C 3.5" TFT LCD -
Model Bandwidth Sample Rate Max. Memory Depth Max. Waveform Capture Rate ADS802A 70MHz 2CH 1.25GSa/s 50Mpts 700，000 wfms/s ADS804A 70MHz 4CH 1.25GSa/s 50Mpts 700，000 wfms/s ADS812A 100MHz 2CH 1.25GSa/s 50Mpts 700，000 wfms/s ADS814A 100MHz 4CH 1.25GSa/s 50Mpts 700，000 wfms/s ADS822A 200MHz 2CH 1.25GSa/s 50Mpts 700，000 wfms/s ADS824A 200MHz 4CH 1.25GSa/s 50Mpts 700，000 wfms/s -
Model Bandwidth Sample Rate Optional Signal Source Digital Channels ADS912A 125MHz 2CH 2GSa/s 30MHz 1CH 16(Probe opt.) ADS914A 125MHz 4CH 2GSa/s 30MHz 1CH 16(Probe opt.) ADS922A 250MHz 2CH 2GSa/s 30MHz 1CH 16(Probe opt.) ADS924A 250MHz 4CH 2GSa/s 30MHz 1CH 16(Probe opt.) -
Model Total Power Rang Current Slope Resolution OEL8511 200W 0-150V/20A 0.01A/ms 1mV/1mA OEL8511B 200W 0-300V/20A 0.01A/ms 1mV/1mA OEL8511C 200W 0-600V/20A 0.01A/ms 1mV/1mA OEL8512 400W 0-150V/40A 0.01A/ms 1mV/1mA OEL8512B 400W 0-300V/40A 0.01A/ms 1mV/1mA OEL8512C 400W 0-600V/40A 0.01A/ms 1mV/1mA OEL8513 500W 0-150V/40A 0.01A/ms 1mV/1mA -
Model Bandwidth Sample Rate Vertical Resolution Arb Waveform Generator (optional） ADS3102A 100MHz (2CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3202A 200MHz (2CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3302A 350MHz (2CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3502A 500MHz (2CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3104A 100MHz (4CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3204A 200MHz (4CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3304A 350MHz (4CH) 2.5GSa/s 12-bit 2CH 50MHz ADS3504A 500MHz (4CH) 2.5GSa/s 12-bit 2CH 50MHz -
Model Total Power Rang Setting Resolution Readback Resolution OEL1515 150W 150V / 15A 1mV / 1mA 1mV / 0.1mA OEL1520 300W 150V / 20A 1mV / 1mA 1mV / 0.1mA OEL1530 300W 150V / 30A 1mV / 1mA 1mV / 0.1mA OEL3015 150W 300V / 15A 1mV / 1mA 1mV / 0.1mA OEL3020 300W 300V / 20A 1mV / 1mA 1mV / 0.1mA OEL3030 300W 300V / 30A 1mV / 1mA 1mV / 0.1mA -
Model Bandwidth Sample Rate Channel Arb Waveform Generator（optional） ADS3102 100MHz 2.5GSa/s 2 2CH 50MHz ADS3202 200MHz 2.5GSa/s 2 2CH 50MHz ADS3352 350MHz 2.5GSa/s 2 2CH 50MHz ADS3502 500MHz 2.5GSa/s 2 2CH 50MHz ADS3104 100MHz 2.5GSa/s 4 2CH 50MHz ADS3204 200MHz 2.5GSa/s 4 2CH 50MHz ADS3354 350MHz 2.5GSa/s 4 2CH 50MHz ADS3504 500MHz 2.5GSa/s 4 2CH 50MHz -
Model Bandwidth Sample Rate Record Length Signal Generator SDS210 100MHz 1GS/s 20M SDS210S 100MHz 1GS/s 20M √ SDS215 150MHz 1GS/s 20M SDS215S 150MHz 1GS/s 20M √ SDS220 200MHz 1GS/s 20M SDS220S 200MHz 1GS/s 20M √ -
Model Bandwidth Sample Rate Vertical Resolution Record Length FDS1102A 100MHz 1GS/s Max 14 bits 10M FDS1102 100MHz 1GS/s 8 bits 10M FDS3102 100MHz 2.5GS/s 8 bits 10M FDS3202 200MHz 2.5GS/s 8 bits 10M FDS3302 300MHz 2.5GS/s 8 bits 10M -
Model No. Bandwidth Sample Rate Record Length Channel XDS4352 350MHz 5GSa/s 400M 2 XDS4354 350MHz 5GSa/s 400M 4 XDS4502 500MHz 5GSa/s 400M 2 XDS4504 500MHz 5GSa/s 400M 4 -
Model No. Bandwidth Sample Rate Vertical Resolution (A/D) Record Length XDS3202A 200MHz 1GS/s 14 bits 40M XDS3102A 100MHz 1GS/s 12 bits 40M XDS3062A 60MHz 1GS/s 12 bits 40M XDS3102 100MHz 1GS/s 8 bits 40M XDS3202E 200MHz 1GS/s 8 bits 40M XDS3202 200MHz 2GS/s 8 bits 40M XDS3302 300MHz 2.5GS/s 8 bits 40M -
Model Wind speed Humidity Temperature Air volume OWM5500 0.6 - 40 m/s 5 - 95 %RH -10 - 50 ℃ √ -
Modle Infrared resolution visible resolution Temperature measurement Display TI219 120*90 640*480 -20°C ~400°C 2.8”TFT LCD（320*240） -
Model Frequency Range Resolution adapter Impedance OF5060 1MHz-6GHz 3mm-45mm N-SMA 50Ω -
Model Frequency Range RBW Phase Noise (Typical) TG XSA1015P 9kHz-1.5GHz 1Hz - 1MHz -106 dBc/Hz @1GHz √ XSA1036P 9kHz-3.6GHz 1Hz - 1MHz -106 dBc/Hz @1GHz √ XSA1075P 9kHz-7.5 GHz 1Hz - 1MHz -106 dBc/Hz @1GHz optional -
Model Frequency Range RBW Phase Noise (Typical) TG Model XSA805 9kHz - 500MHz 1Hz - 1MHz -80 dBc/Hz @1GHz and offset at 10 kHz optional XSA810 9kHz - 1GHz 1Hz - 1MHz -80 dBc/Hz @1GHz and offset at 10 kHz optional XSA815 9kHz - 1.5GHz 1Hz - 1MHz -80 dBc/Hz @1GHz and offset at 10 kHz optional -
Model Digits of Resolution Reading Rate Dispaly IO Interface XDM1141 4 1/2 65 rdgs/s 3.5" LCD USB Device -
Model Frequency Range RBW TG Model GPS HSA1016 9kHz - 1.6GHz 10Hz - 3MHz × √ HSA1016TG 9kHz - 1.6GHz 10Hz - 3MHz √ √ HSA1036 9kHz - 3.6GHz 10Hz - 3MHz × √ HSA1036TG 9kHz - 3.6GHz 10Hz - 3MHz √ √ HSA1075 9kHz - 7.5GHz 10Hz - 3MHz × √ HSA1075TG 9kHz - 7.5GHz 10Hz - 3MHz √ √ -
Model Frequency Range Bandwidth Sample Rate Multimeter HSA2105 9kHz-1.5GHz 50MHz 250MSa/s 4 1/2 digits HSA2307 9kHz-3GHz 70MHz 250MSa/s 4 1/2 digits HSA2310 9kHz-3GHz 100MHz 500MSa/s 4 1/2 digits HSA2320 9kHz-3GHz 200MHz 1GSa/s 4 1/2 digits -
Model Output Power Output Voltage Output Current Settings Resolution OWH67012 1.2KW 0 -80V/150V/300V 0-30A/20A/10A 10mV/1mA OWH67018 1.8KW 0 -150V 0-30A 10mV/1mA OWH67020 2KW 0 -150V/300V/600V 0-20A/10A/10A 10mV/1mA OWH67030 3KW 0 -150V/300V/600V 0-30A/15A/10A 10mV/1mA -
Model Output Power Output Voltage Output Current Channel OWP1000-H series 1KW 60V-300V 5A-30A 1 OWP2000-H series 2KW 45V-600V 8A-100A 1 OWP3000-H series 3KW 45V-600V 8A-100A 1 OWP6000-H series 6KW 100V-1500V 4A-100A 1 OWP8000-H series 8KW 100V-1000V 10A-100A 1 -
Model No. Output Power Output Ranges Output Resolution Channel SPS3051 150W 0 - 30V/0 - 5A 10mV/1mA 1 SPS6051 150W 0 - 60V/0 - 5A 10mV/1mA 1 SPS3081 120W 0 - 30V/0 - 8A 10mV/1mA 1 SPS6081 120W 0 - 60V/0 - 8A 10mV/1mA 1 sps8081 120W 0 - 80V/0 - 8A 10mV/1mA 1 -
Model Output Range Out put Power Multimeter Power resolution SPM3051 30V/5A 150W 4 1/2 digits 10mV/1mA SPM6053 60V/5A 300W 4 1/2 digits 10mV/1mA SPM3103 30V/10A 300W 4 1/2 digits 10mV/1mA SPM6103 60V/10A 300W 4 1/2 digits 10mV/1mA -

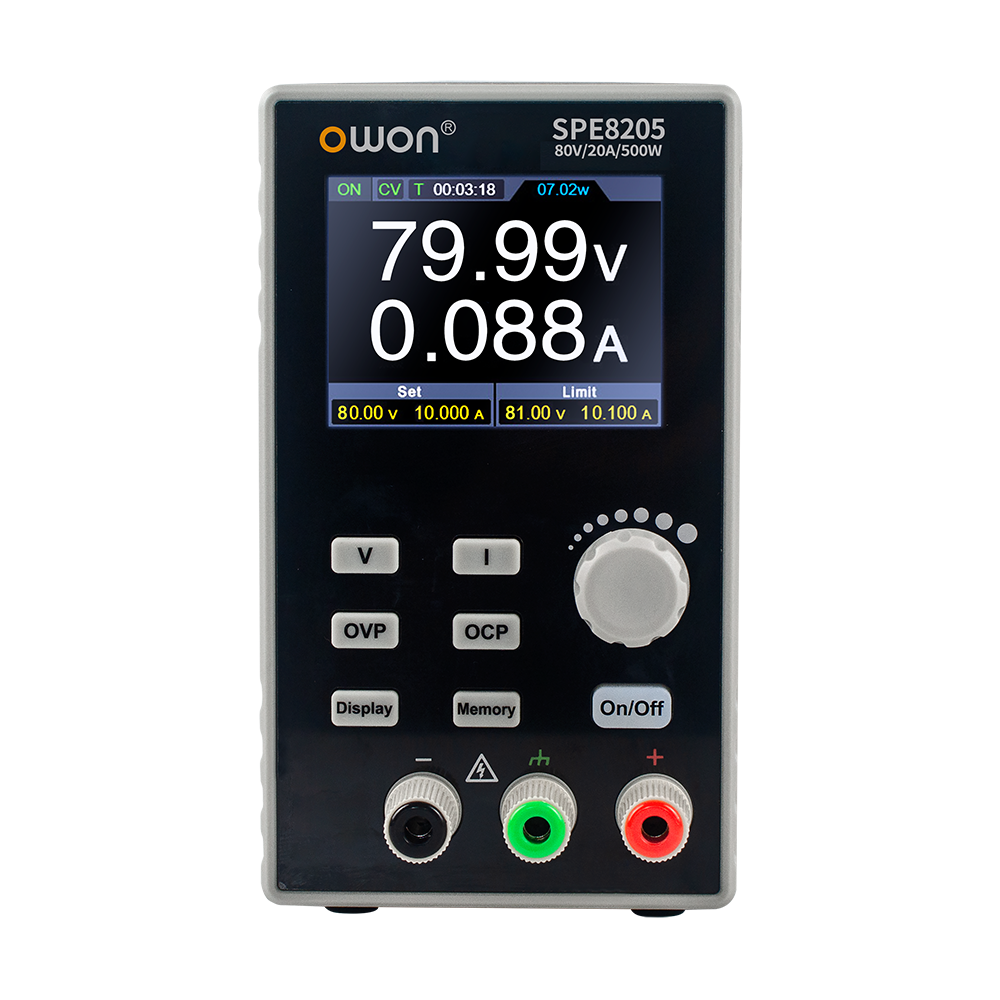

Model No. Output Power Output Ranges Channel Resolution SPE6205 500W 0-60V / 0-20A 1 10mV/1mA SPE8105 500W 0-80V / 0-10A 1 10mV/1mA SPE8205 500W 0-80V / 0-20A 1 10mV/1mA -
Model No. Max Output Power Output Ranges Channel Resolution ODP8353 204W 30V / 5A*2 | 24V / 3A*1 3+Sense 1mV / 1mA ODP8354 228W 30V / 5A*2 | 24V / 3A*2 4+Sense 1mV / 1mA -
Model No. Output Power Output Ranges Channel Output Resolution SPE3051 150W 0-30V / 0-5A 1 10mV/1mA SPE3102 200W 0-30V / 0-10A 1 10mV/1mA SPE6102 200W 0-60V / 0-10A 1 10mV/1mA SPE6053 300W 0-60V / 0-5A 1 10mV/1mA SPE3103 300W 0-30V / 0-10A 1 10mV/1mA SPE6103 300W 0-60V / 0-10A 1 10mV/1mA -
Model Output Power Output Ranges Channel Resolution SPE15054 400W 0 - 31V/0 - 8.1A 1 10mV/1mA SPE15105 500W 0 - 31V/0 - 8.1A 1 10mV/1mA -
Model No. Output Power Output Ranges Channel Output Resolution SP3051 150W 0-30V / 0-5A 1 10mV/1mA SP3101 150W 0-30V / 0-10A 1 10mV/1mA SP6101 150W 0-60V / 0-10A 1 10mV/1mA SP6053 300W 0-60V / 0-5A 1 10mV/1mA SP3103 300W 0-30V / 0-10A 1 10mV/1mA SP6103 300W 0-60V / 0-10A 1 10mV/1mA -
Model No. Output Power Output Ranges Channel Output Resolution P4305 150W 0 - 30V / 0 - 5A 1 1mV / 1mA P4603 180W 0 - 60V / 0 - 3A 1 1mV / 1mA -
Model No. Output Power Output Ranges Channel Output Resolution ODP3122 378W 0 - 30V / 12A-CH | 0 - 6V / 3A 2+Sense 1mV / 1mA ODP6062 378W 0 - 60V / 6A-CH | 0 - 6V / 3A 2+Sense 1mV / 1mA -
Model No. Output Power Output Ranges Channel Output Resolution ODP3033 198W 0 - 30V / 3A x 2-CH | 0 - 6V / 3A 3 1mV / 1mA ODP3063 378W 0 - 30V / 6A x 2-CH | 0 - 6V / 3A 3 1mV / 1mA ODP6033 378W 0 - 60V / 3A x 2-CH | 0 - 6V / 3A 3 1mV / 1mA -
Model No. Output Power Output Voltage Output Current Channel ODP3032 195W 0 - 30V | fixed 5V 0 - 3A | fixed 3A 2+1 -
Modle Display Count AC/DC Current Oscilloscope Bandwidth Bluetooth CMS061 20000 20A-600A 1MHz(voltage);1KHz(current) √ CMS101 20000 20A-1000A 1MHz(voltage);1KHz(current) √ -
Model No. AC/DC Voltage AC/DC Current Display Count Bluetooth CM2100B 600V 100A 20000 √ CM2100 600V 100A 20000 -
Model Display Oscillsocope Bandwidth Battry Safety Compliance HDS120 20000(4 1/2 Digits) 1MHz (only ACV scale) 18650 Lithium batteries CATⅢ1000V HDS160 60000(4 1/2 Digits) 1MHz (only ACV scale) 18650 Lithium batteries CATⅢ1000V -
Model No. AC Voltage DC Voltage AC Current Display Count CM240(discontinued) 0 - 600V 0 - 600V 0 - 400A 2000 -
Model. Bluetooth True RMS Audion NCV OW16A × √ × √ OW16B √ √ × √ -
Model Bluetooth True RMS Auto Ranging NCV OW18D × √ √ √ OW18E √ √ √ √ -
Model. Bluetooth True RMS Audion NCV OW18A × √ × √ OW18B √ √ × √ -
Model No. Bluetooth Module True RMS Offline Recording Function PC support D35 × × × × D35T × √ × × B35 √ × × × B35T √ √ × × B35+ √ × √ √ B35T+ √ √ √ √ -
Model No. Bluetooth Module Offline Recording Function D33 × × B33 √ × B33+ √ √ -
Model Digits of Resolution Reading Rate Dispaly IO Interface XDM2041 4 1/2 60 rdgs/s 4" LCD RS232 -
Model Digits of Resolution Reading Rate Dispaly IO Interface XDM3051 5 1/2 150 rdgs/s 4" LCD USB / RS232 / LAN / WiFi -
Model Digits of Resolution Reading Rate Dispaly IO Interface XDM3041 4 1/2 150 rdgs/s 4" LCD USB / RS232 / LAN / WiFi -
Model Bandwidth Sample rate record length secondary development VDS6102 100MHz 1GS/s 10M windows/android/MAC OS/Linux VDS6102A 100MHz 1GS/s 10M windows/android/MAC OS/Linux -
Model NO. Frequency Output Sample Rate Arb Wave Length Vertial rate DGE2035 35MHz 125MSa/s 8k 14bits DGE2070 70MHz 300MS/s 8k 14bits -
Model NO. Frequency Output Sample Rate Arb Wave Length Vertial rate DGE3032 30MHz (2CH) 125MSa/s 100k 14bits DGE3062 60MHz (2CH) 300MSa/s 100k 14bits DGE3031 30MHz (1CH) 125MSa/s 100k 14bits DGE3061 60MHz (1CH) 300MSa/s 100k 14bits -
Model No. Frequency Output Sample Rate Arb Wave Length extra feature XDG3252 250MHz 1.25GSa/s 1M pts frequency counter; touch screen LCD XDG3202 200MHz 1.25GSa/s 1M pts frequency counter; touch screen LCD XDG3162 160MHz 1.25GSa/s 1M pts frequency counter; touch screen LCD XDG3102 100MHz 1.25GSa/s 1M pts frequency counter; touch screen LCD XDG3082 80MHz 1.25GSa/s 1M pts frequency counter; touch screen LCD -
Model No. Frequency Output Sample Rate Arb Wave Length XDG2030 30MHz 500MS/s 10M XDG2035 35MHz 500MS/s 10M XDG2060 60MHz 500MS/s 10M XDG2080 80MHz 500MS/s 10M XDG2100 100MHz 500MS/s 10M -
Model No. Bandwidth Sample Rate Arb Wave Length AG1012 10MHz 125MS/s 8K pts AG1022 25MHz 125MS/s 8K pts -
Model No. Bandwidth Sample Rate Arb Wave Length extra feature AG1012F 10MHz 125MS/s 8k pts frequency counter [range : 100mHz - 200MHz] AG1022F 25MHz 125MS/s 8k pts frequency counter [range : 100mHz - 200MHz] AG2052F 50MHz 300MS/s 10k pts frequency counter [range : 100mHz - 200MHz] AG2062F 60MHz 300MS/s 10k pts frequency counter [range : 100mHz - 200MHz] -
Model NO. Frequency Output Sample Rate Arb Wave Length modulation functions DGE3031 30MHz 125MSa/s 8K support DGE3061 60MHz 300MSa/s 8k support -
Model NO. Frequency Output Sample Rate Arb Wave Length Vertial rate DGE1030 30MHz 125MSa/s 8k 14bits DGE1060 60MHz 300MS/s 8k 14bits -
Model No. Bandwidth Sample Rate Arb Wave Length AG051 5MHz 125MS/s 2 pts to 8K pts AG051F 5MHz 125MS/s 2 pts to 8K pts AG1011 10MHz 125MS/s 2 pts to 8K pts AG1011F 10MHz 125MS/s 2 pts to 8K pts -
Model DSO DMM Vehicle Diagnosis Application Scenarios HDS2102A-1 100MHz， 1GSa/s 4 1/2 digits 60+ reference waveform Single-Channel Testing HDS2102A-2 100MHz， 1GSa/s 4 1/2 digits 60+ reference waveform Multi-Channel Testing HDS2102A-3 100MHz， 1GSa/s 4 1/2 digits 60+ reference waveform Multi-Channel +Current Testing -
Model Bandwidth Sample Rate Channel Standard Automotive Waveforms VDS8104 100MHz 1GSa/s 4 78 types -
Model Frequency Range RBW SSB Phase Noise Support VSA815P 9kHz - 1.5GHz 1Hz-1MHz -106 dBc/Hz @1GHz Linux/Android/Windows VSA836P 9kHz - 3.6GHz 1Hz-1MHz -106 dBc/Hz @1GHz Linux/Android/Windows VSA1036P 9kHz - 3.6GHz 1Hz-1MHz -98 dBc/Hz @1GHz Linux/Android/Windows VSA880P 9kHz - 8GHz 1Hz-1MHz -106 dBc/Hz @1GHz Linux/Android/Windows -
Model No. DC Range AC Range Bandwidth Power CP024 4A - 400A 4A - 400A 200KHz 9V (6LR61) Battery -
-
-
-
Model No. Test Range Resolution Bandwidth CP-07+ 400mA - 4A 0.1mA DC - 1MHz (±3dB) -
Model Bandwidth Sample Rate Vertical Resolution (A/D) Record Length TAO3072 70MHz 1GS/s 8bits 40M TAO3102 100MHz 1GS/s 8bits 40M TAO3122 120MHz 1GS/s 8bits 40M TAO3072A 70MHz 1GS/s 8bits/12bits/14bits 40M TAO3102A 100MHz 1GS/s 8bits/12bits/14bits 40M TAO3122A 120MHz 1GS/s 8bits/12bits/14bits 40M -
Model No. Test Range Resolution Bandwidth CP-05+ 1mA - 400A 1mA DC - 200KHz (±3dB) -
Model Bandwidth Sample rate Vertical accurate secondary development VDS6074 70MHz 1GS/s 8 bits VDS6104 100MHz 1GS/s 8 bits VDS6074A 70MHz 1GS/s 8bits/12bits/14bits VDS6104A 100MHz 1GS/s 8bits/12bits/14bits -
-
Model No. Channel Bandwidth Sample Rate extra feature VDS1022I 2 25MHz 100MS/s USB isolation VDS1022 2 25MHz 100MS/s / VDS2062 2 60MHz 1GS/s / VDS2064 4 60MHz 1GS/s / VDS3102 2 100MHz 1GS/s / VDS3104 4 100MHz 1GS/s / -
Model No. Channel Bandwidth Sample Rate extra feature RDS1021(discontinued) 1 25MHz 100MS/s / RDS1021I(discontinued) 1 25MHz 100MS/s USB isolation -
Model Bandwidth Sample Rate Multimeter Signal Generator HDS307S 70MHz 250MSa/s 4 1/2 digits Max 30MHz HDS310S 100MHz 500MSa/s 4 1/2 digits Max 30MHz HDS320S 200MHz 1GSa/s 4 1/2 digits Max 30MHz -
Model Bandwidth Sample Rate Multimeter Signal Generator HDS25 25MHz 250MSa/s √ HDS25S 25MHz 250MSa/s √ √ HDS242 40MHz 250MSa/s √ HDS242S 40MHz 250MSa/s √ √ HDS272 70MHz 250MSa/s √ HDS272S 70MHz 250MSa/s √ √ HDS2102 100MHz 500MSa/s √ HDS2102S 100MHz 500MSa/s √ √ HDS2202 200MHz 1GSa/s √ HDS2202S 200MHz 1GSa/s √ √ -
Model No. Channel Bandwidth Sample Rate HDS1022M-I 2 (channel isolation) 20MHz 100MS/s -
Model Bandwidth Sample rate Channel Multimeter HDS241 40MHz 250MSa/s 1 24000 counts HDS271 70MHz 250MSa/s 1 24000 counts -
Model No. Channel Bandwidth Sample Rate Record Length HDS1022M-N 2 20MHz 500MS/s 6K HDS2062M-N 2 60MHz 1GS/s 6K HDS3102M-N 2 100MHz 1GS/s 6K HDS4202M-N 2 200MHz 1GS/s 6K -
Model No. Channel Bandwidth Sample Rate Record Length HDS1021M-N 1 20MHz 500MS/s 24K HDS2061M-N 1 60MHz 500MS/s 24K HDS3101M-N 1 100MHz 1GS/s 24K -
Model No. Bluetooth Module Offline Recording Function B41T+ √ √ -
Model No. Bandwidth Sample Rate Record Length waveform refresh rate XDS2102 100MHz 1GSa/s 40M/80M(optional) 75，000 wfms/s XDS2202 200MHz 1GSa/s 40M/80M(optional) 75，000 wfms/s -
Model Bandwidth Sample Rate Vertical Resolution (A/D) Record Length XDS3064E 60MHz 1GS/s 8 bits 40M XDS3104E 100MHz 1GS/s 8 bits 40M XDS3064AE 60MHz 1GS/s 14 bits 40M XDS3104AE 100MHz 1GS/s 14 bits 40M XDS3104 100MHz 1GS/s (500MS/s for each channel) 8 bits 40M XDS3204E 200MHz 1GS/s (500MS/s for each channel) 8 bits 40M XDS3204AE 200MHz 1GS/s 14 bits 40M -
Model Bandwidth Sample Rate Channel Record Length XDS2102A 100 MHz 1 GSa/s 2 20 Mpts -
Model No. Channel Bandwidth Sample Rate Record Length SDS1022 2 20MHz 100MS/s 10K SDS1052 2 50MHz 500MS/s 10K SDS1102 2 100MHz 1GS/s 10K SDS1202 2 200MHz 1GS/s 10K -
Model No. Channel Bandwidth Sample Rate Record Length SDS1104 4 100MHz 1GS/s 20K -
Model No. Channel Bandwidth Sample Rate Record length SDS7102 2 + 1 100MHz 1GS/s 10M SDS8102 2 + 1 100MHz 2GS/s 10M SDS7202 2 + 1 200MHz 1GS/s 10M SDS8202 2 + 1 200MHz 2GS/s 10M SDS8302 2 + 1 300MHz 2.5GS/s 10M SDS9302 2 + 1 300MHz 3.2GS/s 10M -
Model No. Channel Bandwidth Sample Rate Recod Length SDS5032E 2 + 1 30MHz 500MS/s 10K SDS5052E 2 + 1 50MHz 500MS/s 10K SDS6062E 2 + 1 60MHz 500MS/s 1M SDS7072E 2 + 1 70MHz 1GS/s 1M SDS7102E 2 + 1 100MHz 1GS/s 1M SDS7122E 2 + 1 125MHz 1GS/s 1M -
Model No. Channel Bandwidth Sample Rate MSO7102T 2+1 | LA - 16 100MHz 1GS/s | LA - 2GS/s MSO8102T 2+1 | LA - 16 100MHz 2GS/s MSO8202T 2+1 | LA - 16 200MHz 2GS/s -
Model Bandwidth Sample Rate Channel Waveform Refresh Rate AS101 10MHz 100MS/s 1 130，000wfrms/s AS201 20MHz 100MS/s 1 130，000wfrms/s -
Model Bandwidth Sample Rate Vertical Resolution (A/D) Record Length TAO3074 70MHz 1GS/s 8 bits 40M TAO3074A 70MHz 1GS/s max14bits 40M TAO3104 100MHz 1GS/s 8 bits 40M TAO3104A 100MHz 1GS/s max14bits 40M -
Model NO. Test Frequency LCR2300 10Hz～300kHz LCR2200 10Hz～200kHz LCR2100 10Hz～100kHz LCR2020 10Hz～20kHz -
Model Frequency Range RBW Phase Noise (Typical) TG Model XSA1015-TG（Discontinued） 9kHz - 1.5GHz 10Hz - 3MHz <-82dBc/Hz@10KHz √ XSA1032-TG（Discontinued） 9kHz - 3.2GHz 10Hz - 3MHz <-82dBc/Hz@10KHz √ XSA1036-TG（Discontinued） 9kHz - 3.6GHz 10Hz - 3MHz <-98dBc/Hz@10kHz √ XSA1075-TG（Discontinued） 9kHz - 7.5GHz 10Hz - 3MHz <-98dBc/Hz@10kHz √ -
Model No. Bandwidth Sample Rate Arb Wave Length AG4081(discontinued) 80MHz 400MS/s 2 pts to 1M pts AG4101(discontinued) 100MHz 400MS/s 2 pts to 1M pts AG4121(discontinued) 120MHz 400MS/s 2 pts to 1M pts AG4151(discontinued) 150MHz 400MS/s 2 pts to 1M pts -
Model Bandwidth Isolation Voltage Max Measurement Voltage Range Accuracy OIP3015 DC-150MHz 60kV ±2500V (optional) 1%（typical) OIP3035 DC-350MHz 60kV ±2500V (optional) 1%（typical) OIP3050 DC-500MHz 60kV ±2500V (optional) 1%（typical) OIP3080 DC-800MHz 60kV ±2500V (optional) 1%（typical) OIP3100 DC-1GHz 60kV ±2500V (optional) 1%（typical) -
Model Frequency Range RBW TG Model GPS HSA015 9kHz - 1.5GHz 10Hz - 3MHz × × HSA015TG 9kHz - 1.5GHz 10Hz - 3MHz √ × HSA032 9kHz - 3.2GHz 10Hz - 3MHz × × HSA032TG 9kHz - 3.2GHz 10Hz - 3MHz √ ×
