OWON Pen-type PC Oscilloscope

 - 25MHz bandwidth
- 100MS/s sample rate
- 5K record length
- FFT function
- Human engineering design

- Multi- action mode via creative trackball
- Multi- trigger option: edge, slope, and pulse
- 5mV micro signals supported
- USB bus powering, and optional USB isolated function
- Easy portability, pocket accommodated

Send Inquiry
Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON pen-type pc oscilloscope, pc digital oscilloscope, economical oscilloscope, oscilloscope order, oscilloscope software, pen oscilloscope with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.


1. The full DSO in your pocket

Pen-type design with easy portability, the ideal solution for on-site measurement.







2. Designed to be easily- disassembled

Special metal material made probe- tip assures durable lifetime.





3. Ergonomic comfortability

Less touch-pressure from U-shape curved surface, long-time operation also could be one kind enjoyment.





The running/ stopping of Wave Rambler, is under the control of trackball.



The zero voltage position, horizontal trigger position, and voltage base / time base could be adjusted by rolling the trackball, which makes the device - operation more comfortable,  and convenient.



The waterdrop-shape button brings you into 4 control options - the setting of trackball function, single trigger, force trigger, and autoset.



4. UISO function

Creative USB isolation function fulfills direct device- powering via USB port, and supports floating measurement (isolation voltage upto 1000V), making the operation more user-friendly, assuring safer T&M environment, and decreasing the interference to micro signal- measuring to the minimum.







5. Quality DSO for you

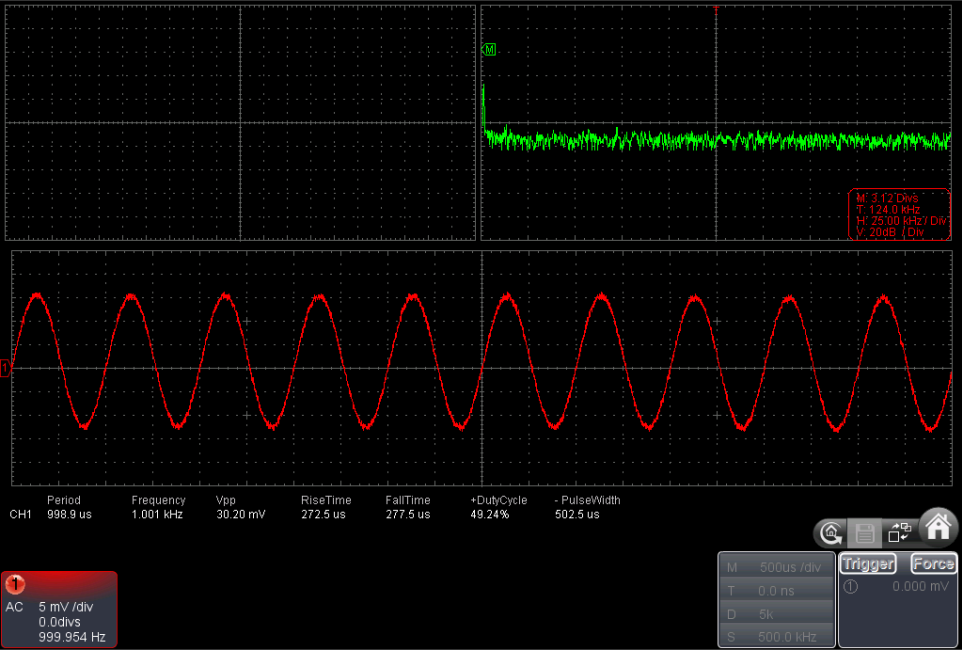

Waveform recording/ replaying, FFT, and multi-trigger option available





Video
  • RDS Track Ball setting

  • RDS Brief Introduction

Specifications

Model RDS1021 RDS1021I
Bandwidth 25MHZ
Sample Rate 100MSa/s
Horizontal Scale (s/div) 5ns/div - 100s/div, step by 1 - 2 - 5
Rise Time ≤14ns
Record Length 5K
Vertical Resolution (A/D) 8 bits
Max Input Voltage 50V (DC + AC peak) 400V (DC + AC peak)
Vertical Sensitivity 5mV/div - 5V/div
Trigger Type Edge, Pulse, and Slope
Trigger Mode Auto, Normal, and Single
Acquisition Mode Sample, Peak Detect, and Average
Communication Interface USB 2.0 USB 2.0 (isolation)
Dimensions (W × H × D) 150 x 20 x 18 (mm)
Device Weight 0.27 kg

Support
Accessories

The accessories subject to final delivery.

  • Quick Guide
  • USB Cable
  • Grounding Clamp
  • Protection Cover
  • USB Flash Disk
