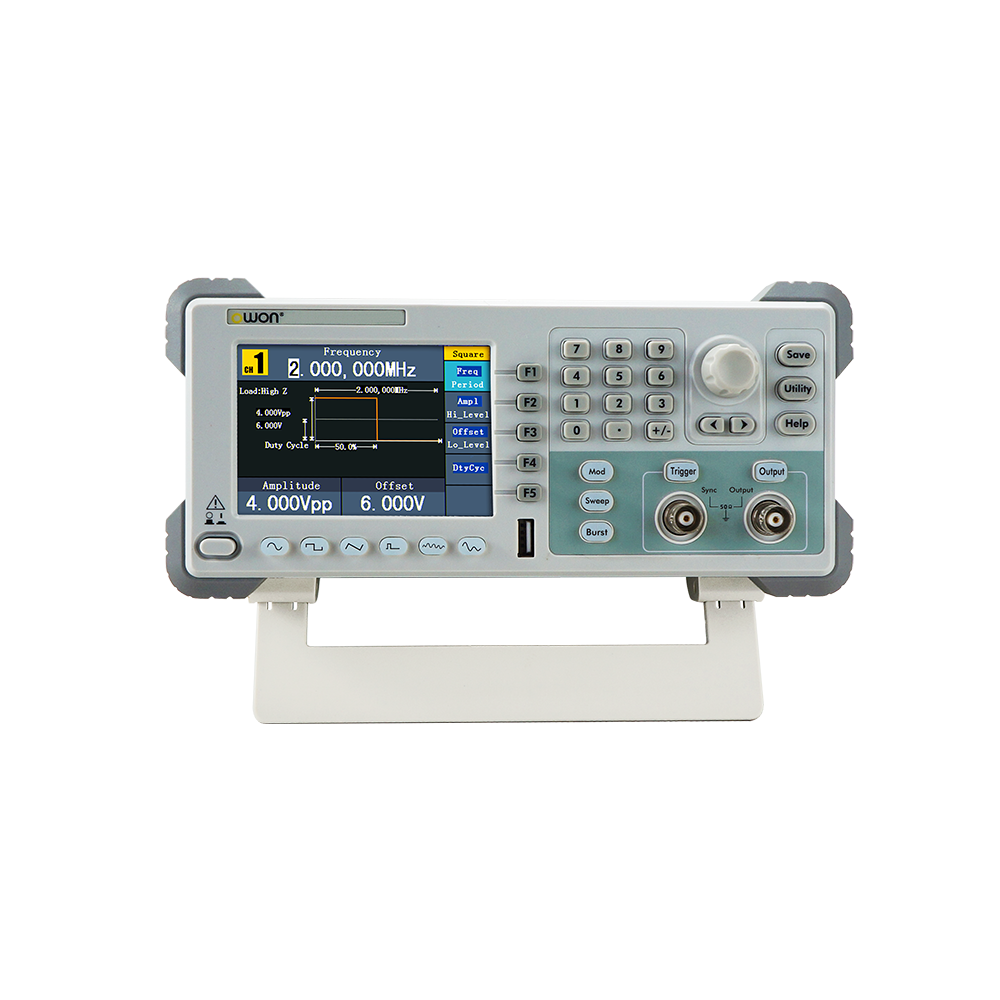

OWON 1-CH Low Frequency Arbitrary Waveform Generator

+ Advanced DDS technology, upto 10MHz frequency output
+ 125MS/s sample rate, and 1μHz frequency resolution
+ Vertical Resolution : 14 bits, and 8K arb waveform length
+ Comprehensive waveform output : 5 basic waveforms,
   and 45 built-in arbitrary waveforms
+ Comprehensive modulation functions :
   AM, FM, PM, FSK, Sweep, and Burst
+ SCPI, and LabVIEW supported
+ 4'' high resolution (480 x 320 pixels) LCD

+ could work with OWON SDS Series DSO smoothly

Send Inquiry
Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON 1-ch low frequency arbitrary waveform generator, economical signal generator, dds function generator, dds waveform generator, low frequency generator with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.


1. Build-in 45 arbitrary waveforms

Build-in educational/industrial common waveforms and divide it into common, math, engineer, window, other types.





2. Multiple modulate function

Modulate function includes AM, FM, PM, ASK, FSK, PSK and PWN. Internal and external modulate source supported to meet the requirement for more educational or communication system test.



Video
  • AG Brief Introduction

Specifications

Model AG051 AG051F AG1011 AG1011F
Channel single + trigger
Frequency Output 5MHz 10MHz
Sample Rate 125MS/s
Vertical Resolution 14 bits
Waveform
Standard Waveform Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms,
and user-defined arbitrary waveform
Frequency (resolution 1μHz)
Sine 1μHz - 5MHz 1μHz - 10MHz
Square 1μHz - 5MHz
Pulse 1μHz - 5MHz
Ramp 1μHz - 1MHz
Noise 5MHz (-3dB) (typical)
Arb 1μHz - 5MHz
Amplitude
Amplitude 1m Vpp - 12.5 Vpp (50Ω),
1m Vpp - 25 Vpp (high impedance)
Resolution 1m Vpp, or 4 digits
DC Offset Range (AD+DC) ±6.25V (50Ω), ±12.5V (high impedance)
DC Offset Range Resolution 1mV, or 4 digits
Load Impedance 50Ω (typical)
Arbitrary Waveform
Wave Length 2 pts to 8K pts
Sample Rate 125MS/s
Vertical Resolution 14 bits
Non-volatile Memory 64M bytes
Modulation
Modulation Waveform / AM, FM, PM, FSK, Sweep, and Burst / AM, FM, PM, FSK, Sweep, and Burst
Modulation Frequency / 2mHz to 20.00KHz
(FSK 2mHz - 100KHz)
/ 2mHz to 20.00KHz
(FSK 2mHz - 100KHz)
Power Amplifier Module (optional)
Input Impedance 50 kΩ Output Impedance <2 Ω
Max Input Voltage 2.2Vpp Gain X 10
Max Output Voltage 22 Vpp Offset <7%
Output Slew Rate 10V/us Bandwidth (at full power) DC 100kHz
Max Output Power 10 W
Input / Output
Display 4 inch (480 x 320 pixels) LCD
Type external reference clock input external modulation input,
external trigger input,
and external reference clock input
external reference clock input external modulation input,
external trigger input,
and external reference clock input
Communication Interface USB device
Mechanical
Dimension (W x H x D) 235 x 110 x 295 (mm)
Device Weight 3.00 kg

Support
Accessories

The accessories subject to final delivery.

  • Power Cord
  • CD Rom
  • Quick Guide
  • USB Cable
  • Q9
